RFID Anti-Metal Tags

RFID Anti-Metal Tags
RFID Anti-Metal Tags

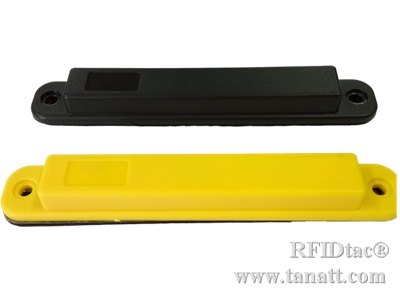

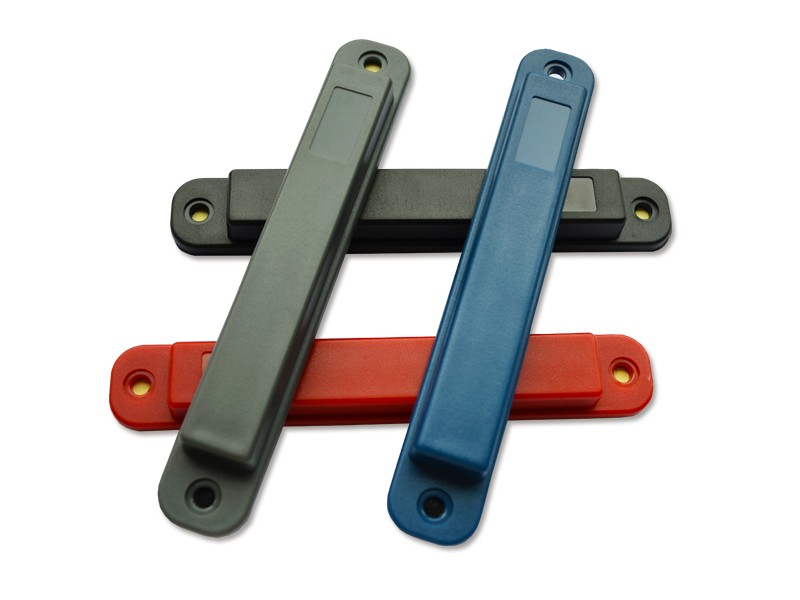

1. RFID Anti-Metal Tags

-  a good anti-metal properties can be achieved in metal performance long-range reader with anti-metal, high temperature, water, acid and alkali resistance, impact resistance and other characteristics

- multi-tag identification, identification of high sensitivity, fast, with co ball

- unique identification code, mainly for warehouse pallets, equipment inspection, asset tags and other metal application support

● Basic Parameters

Types UHF passive RFID tags
Working Frequency 860-960MHz
Protocol ISO / IEC 18000-6C EPC Class1 Gen2

● Physical Parameters

Size 125 * 21.5 * 12.5mm or customized
Packaging Materials ABS+Gelatin sponge
Antenna Aluminum etching antenna
Craft Silk screen print,Inkjet print,Encoding

● Performance Parameters

Chip
Alien H3, impinjM4D / M4E / M4QT / M5
Storage Related to the chip
Operating mode  read and write
Data storage time > 10 years
Write Endurance 100,000 times
Reading Distance 0-10m (the reading range is related to the working condition and reader)

● Environmental Parameters

operating temperature (-25 ℃ ~ + 55 ℃)
Storage temperature (-35 ℃ ~ + 75 ℃)

● Typical applications

Applications Warehouse management,Asset management

● Packaging

Packaging Information 10pcs / bag, 500 pcs/ Box

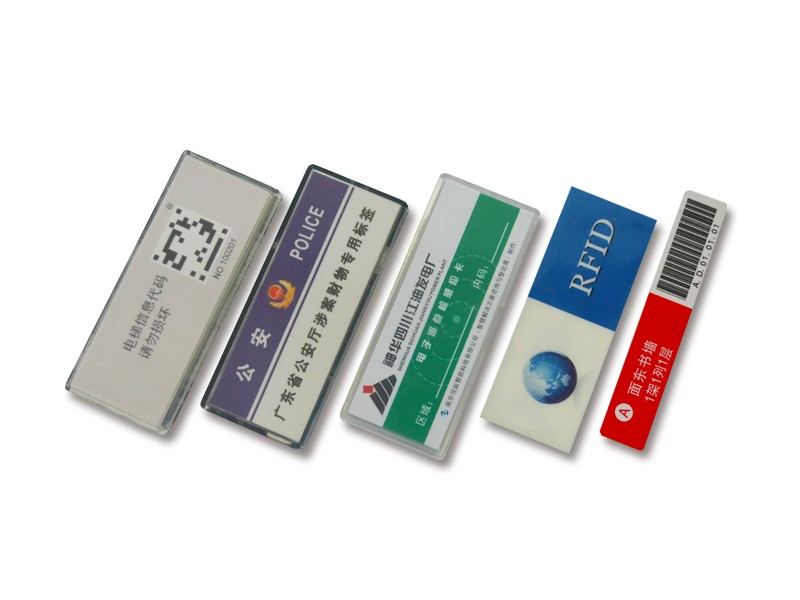

2. RFID Acrylic Anti-Metal Tags

- a good anti-metal properties can be achieved in metal performance remote reader, indoor and outdoor can be generic, with a high temperature, water, acid and alkali resistance, impact resistance and other characteristics
- multi-tag identification, identification of high sensitivity, fast with Korfball unique identification code
- mainly for warehouse pallets, equipment inspection, asset tags and other metal application support

● Basic Parameters

Types  UHF passive RFID tags
Working Frequency 860-960MHz
Protocol ISO / IEC 18000-6C EPC Class1 Gen2

● Physical Parameters

Size 80 * 30 * 4mm, 60 * 30 * 4mm or customized
Packaging Materials Acrylic + adhesive
Antenna Etched aluminum
Craft 4C Offset printing,Inkjet print,Encoding

● Performance Parameters

Chip Alien H3, impinjM4D / M4E / M4QT / M5
Storage Related to the chip
Operating mode Can read and write
Data Retention > 10 years
Write Endurance 100,000 times
Reading distance 0-10m (the reading range is related to the working condition and reader)

● Environmental Parameters

operating temperature (-25 ℃ ~ + 55 ℃)
Storage temperature (-35 ℃ ~ + 75 ℃)

● Typical applications

Applications Warehouse managemen,Asset management

● Package

Packaging Information 150pcs / box

3. RFID Gas Cylinder Labels

- good resistance to metal, can achieve long-range read and write performance in the metal, indoor and outdoor can be universal, with high temperature, water, acid and alkali, impact resistance and other characteristics
- multi-label identification, identification of high sensitivity, speed, with a unique ball co-identification code
- Mainly used in the management of metal articles and special equipment such as electronic equipment, asset maintenance, gas cylinder, elevator maintenance, auto parts, high pressure boiler, high pressure vessel, high pressure pipeline, lifting machinery and amusement facilities.

● Basic Parameters

Types Passive RFID tag
Working Frequency 13.56MHz, 860-960MHz
Protocol ISO14443A, ISO15693, ISO / IEC 18000-6C EPC Class1 Gen2

● Physical Parameters

Size 62 * 32 * 8mm or customized
Packaging Materials ABS+Gelatin sponge
Antenna Aluminum etching antenna
Craft 4C offset printing,Encoding

● Performance Parameters

Chip I CODE SLIX, FM1108, impinjM4D / M4E / M4QT / M5
Storage Related to the chip
Operating mode  read and write
Data Retention > 10 years
Write Endurance 100,000 times
Reading distance 0-5cm, 0-10m (the reading range is related to the working condition and reader)

● environmental parameters

Operating temperature (-25 ℃ ~ + 55 ℃)
Storage temperature (-35 ℃ ~ + 75 ℃)

● Typical applications

Applications Industrial gas cylinders, Household gas cylinder storage and logistics, Inspection management

● Package

Packaging Information 150pcs / box
