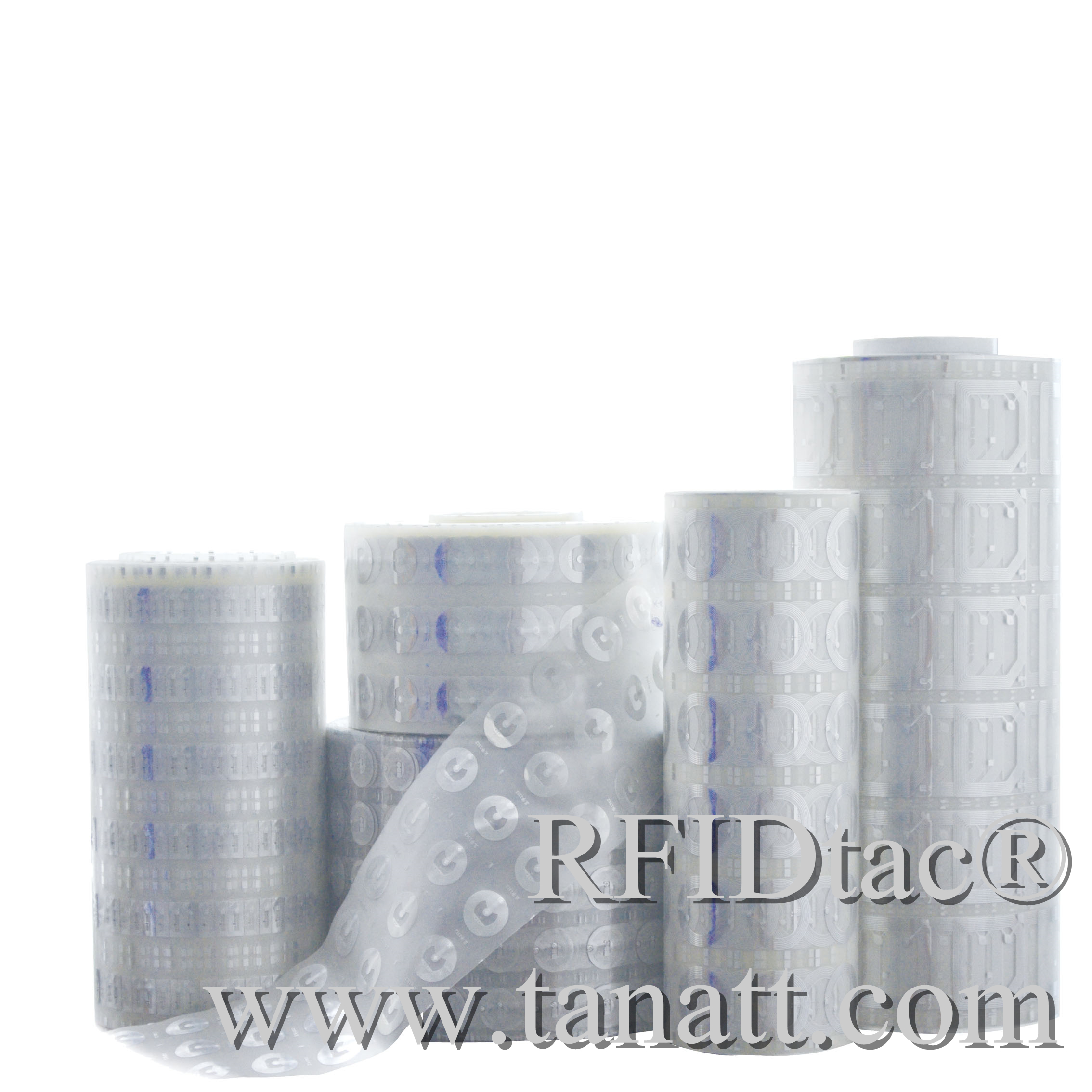

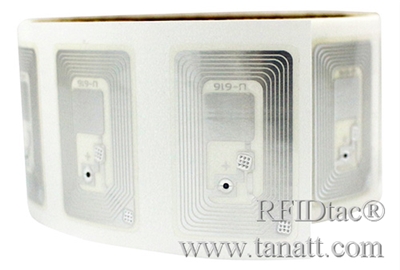

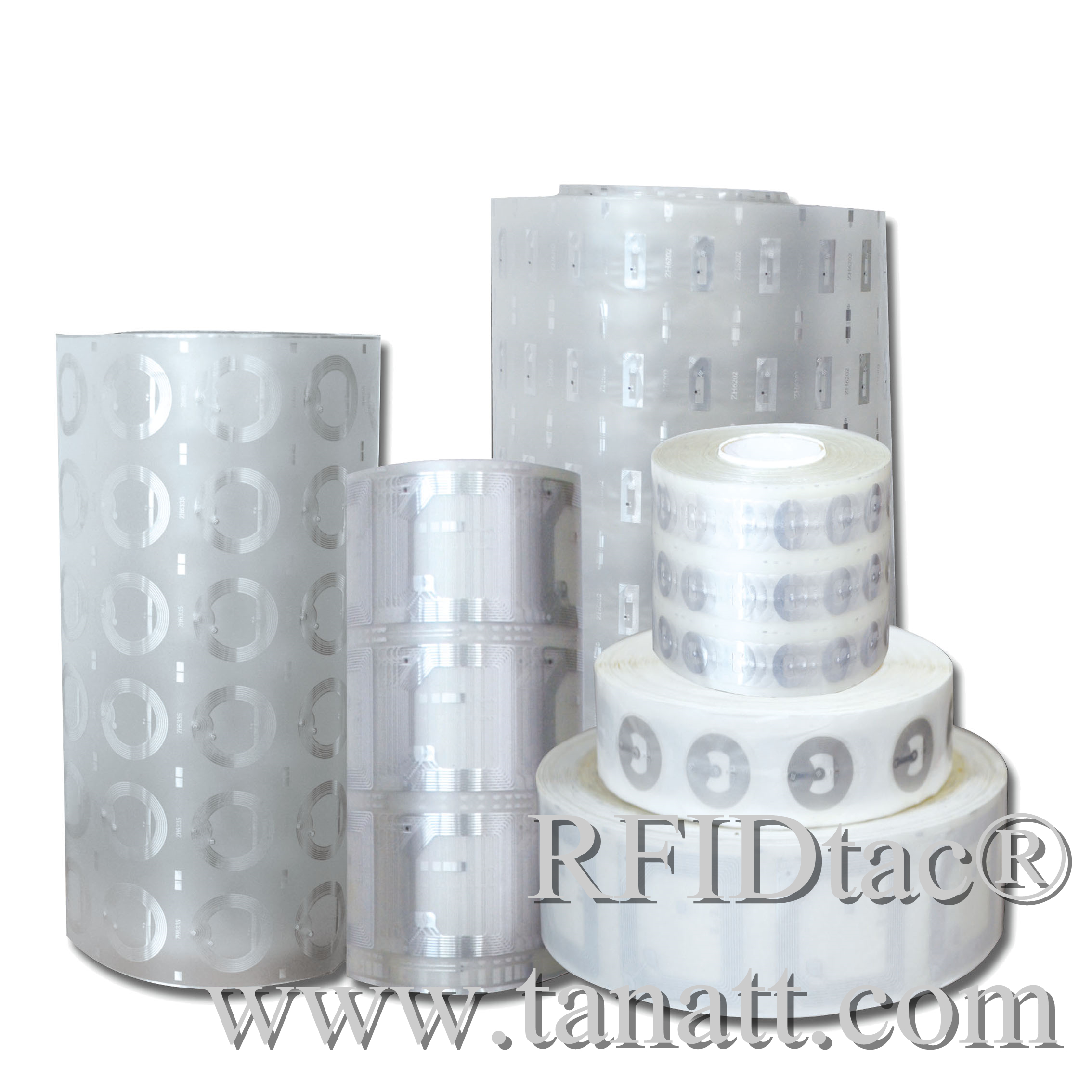

HF Dry / Wet Inlay

HF Dry / Wet Inlay

1. multi-tag identification, identification tag

2. high sensitivity, high security performance, has Korfball unique identifier (UID code)

3. using various materials (copper paper, PET, thermal paper, DuPont paper, PP synthetic paper ) package

● Basic parameters

Types of High-frequency passive RFID tags
Working Frequency 13.56MHz
Protocol IS014443A, ISO15693

● Physical parameters

size Size flexible (customized)
Packaging Materials PET + etched aluminum antenna
Antenna Aluminum Etching aluminum
Craft None

● Performance Parameters

Chip S50 / S70, Ultralight EV1 / Ultralight C, NTAG213 / 216, I CODE SLIX, FM1108
storage Related to the chip
Operating Mode  read and write
Data Retention > 10 years
Write Endurance 100,000 views
Reading Distance 0-5cm (read from the work environment and reader related)

● Environmental Parameters

Working Temperature

-25 ℃ ~ + 55 ℃
Storage temperature -35 ℃ ~ + 70 ℃

● Typical Applications

Applications Logistics, Asset management, Retail management, Pharmaceutical management, Supply chain management

● Packaging

Packaging Information Pcs or roll
