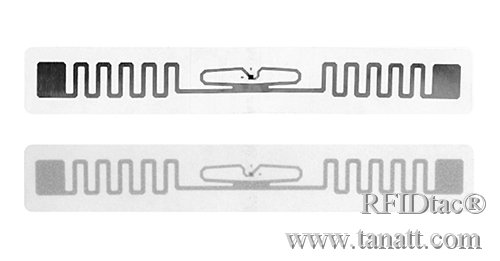

UHF Dry / Wet Inlay
1. multi-tag identification, identification tag
2. high sensitivity, high security performance, has Korfball unique identifier (TID code)
3. using various materials (copper paper, PET, thermal paper, DuPont paper, PP synthetic paper ) package
| ● Basic Parameters | |
| Types of | UHF passive RFID Tags |
| Working Frequency | 860-960MHz |
| Protocol | ISO / IEC 18000-6C EPC Class1 Gen2 |
| ● Physical Parameters | |

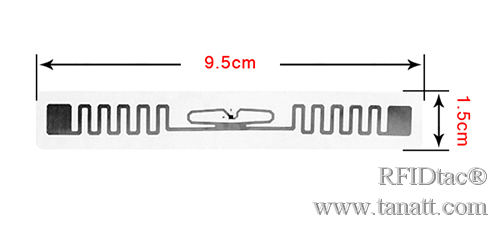

| Size | Flexible size (customized) |
| Material | PET + etched aluminum antenna |
| Antenna | Aluminum etching antenna |
| Craft | None |
| ● Performance Parameters | |
| Chip | Alien H3, impinjM4D / M4E / M4QT / M5 |
| Storage | Related to the chip |
| Operating modes | read and write |
| Data Retention | > 10 years |
| Write Endurance | 100,000 views |
| Reading Distance | 0-10m (Related to the chip,antenna and readers) |
| ● Environmental Parameters | |
| Operating temperature | (-25 ℃ ~ + 55 ℃) |
| Storage temperature | (-30 ℃ ~ + 65 ℃) |
| ● Typical Applications | |
| Applications | Logistics, Assets management, Retail management, Pharmaceutical management, Supply chain management |
| ● Packaging | |

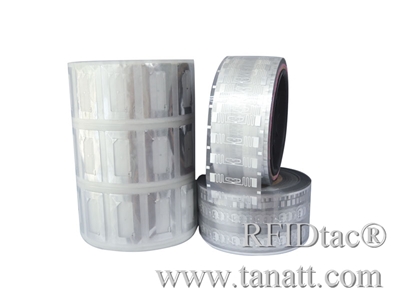

| Package Information | Piece/Roll package |
