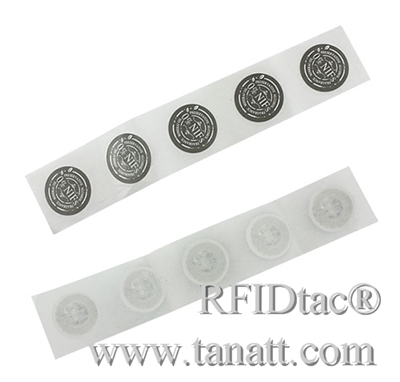

NFC TAGS
NFC is a method of providing easy, safe, fast wireless connectivity technology communications, as opposed to having NFC RFID for short distance, high bandwidth, low energy consumption. NFC is compatible with existing contactless smart card technology has become more and more major vendors support the official standard. Again, NFC is a short-range connection protocol, providing a variety between devices easy, safe, rapid and automated communications. Compared with other wireless world connectivity, NFC is a private communication close, NFC is in the access control, public transportation, mobile payment and other fields to play a huge role.
● Basic Parameters
● Physical Parameters
● Performance Parameters
● Environmental Parameters
● Typical Applications
● Package
Types
High-frequency passive RFID tags
Working Frequency
13.56MHz
Protocol
ISO14443A
Size
30x30mm, (can be customized)
Packaging Material
PET, PVC, Coated paper, PP Synthetic Paper
Antenna
Etching aluminum
Craft
4C Offset printing ,print ID number，Encoding,or with anti-metal material
Chip
NTAG213, NTAG216
Storage
Related to the chip
Operating mode
read and write
Data Retention
> 10 years
Write Endurance
100,000 times
Reading Distance
0-5cm (the reading range is related to the working condition and reader)
Working temperature
-25 ℃ ~ + 55 ℃
Storage temperature
-35 ℃ ~ + 70 ℃
Applications
Access control management, Membership management, mobile payment, product management
Packaging Information
Piece/Roll
