Acrylic Tearable Screen Printing Reflective Tape

Acrylic Tearable Screen Printing Reflective Tape

Face Film Acrylic
Film Thickness  80-90 mics
AVG(RA) ≥8 CIL/㎡
Durability 3 years Outdoor
Width up to 124cm, can be customized
Release Liner 115 Gram Poly-coated paper liner
Feature Plotter cutting, Screen printing

TN9015 Screen Print Commercial Grade Description

TN9015 Acrylic Commercial Grade Reflective film is an enclosed beaded retroreflective sheeting which consists of retroreflective glass beads sealed onto an Acrylic substrate. It can use to plotter cutting and screen print. Please do not use it on digital print etc. When using for plotter cutting, it’s not suitable for Low-temperature environment as Acrylic will get brittle and easy to damaged.

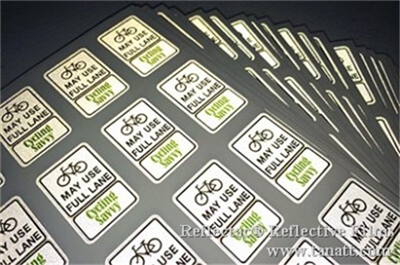

As a Commercial grade reflective sheeting, TN9015 design for economical use, intended for use on sign lettering applications requiring durability of up to 1-3 years, mainly for advertising graphic, promotional signs, and Personality decoration.

Technical Data

  • Retroreflective Elements: enclosed glass beaded
  • Durability: 1-3 years outdoor by the specialist application (under vertical outdoor exposure)
  • Roll Sizes: 1.24M (W) x 45.7M, 48” (W) x 50 yards
  • Coefficients of Retroreflection (Ra)
Obs. Angle Ent. Angle White Yellow Orange Red Blue Green Brown Black
0.2 -4 8 4.5 4 3.2 0.6 2 0.2 0.1

* Test by Roadmaster according to ASTM D4956

  • Film Thickness: 80-90 mic
  • Face Film: 30 mic Acrylic
  • Adhesive: 30 mics permanent pressure sensitive adhesive
  • Release Liner: 115 GSM Poly coated paper liner (white or yellow)
  • Application Surface: Flat surface only such as aluminum
  • Application Temperature: 15℃ or higher by any of the following methods:
    • Mechanical squeeze roll applicator
    • Hand squeeze roll applicator
    • Hand application is recommended for copy only

Leading Time

  • We have regular stock in the warehouse, otherwise, it will take 7-10 days upon deposits receive. Please confirm with us before ordering.

OEM & ODM

  • For order less than 100 rolls, we can do OEM Carton and Product mark
  • For order more than 100 rolls, and request your own logo, it needs one more deposit.

Quality Inspection

  • Raw material inspection: From face film to release paper, all the material will be strictly inspected before putting into production. We only use Qualified raw materials;
  • Production inspection: QC will cut production samples, bring it to our own lab then inspect brightness, stretch, thickness, etc.,also they will bring Brightness detector to the production line and check for brightness.
  • Final inspection:We will sample test the final product, and also do inspection under the client’s requested.

Package

  • Inner packing: PET inner film + Plastic Bag + 2 pc Plastic Plug
  • Outer packing: 5 layers carton box with carton sealing nail
Model Size (M) Carton (M) N.W.  (KG) G.W. (KG) 20GP  (Roll)
TN9015 1.24*45.7 1.31*0.19*0.215 13.6 16.8 563
  • *This data only for reference
  • *Please contact our staff for customized products.
  • *The data does not include the pallets size, if your order is less than one container, we recommended using pallets for protecting the goods.
  • Loading Port:Shenzhen or other China port

Storage

  • Reflective Sheeting must be used within 1 year after the date of receipt from Tanatt;
  • Please use PET inner film to tightly packed partially used Rolls, then return it back to the shipping carton. Vertically placed it can avoid distortion due to substrate buckling or extension due to moisture absorption, and avoid pressure that may damage the reflective layer.
  • Store the sheeting in a clean, dry area at 20 ℃ and 50% relative humidity and away from direct sunlight;
