Reflective Sheeting For Traffic Sign

Reflective Sheeting For Traffic Sign

  • Face Film 30 mics PMMA, tearable
    Film Thickness 130 mics
    AVG(RA) ≥70 CIL/㎡
    Durability 7 years Outdoor
    Width up to 124cm, can be customized
    Release Liner 150 gram
    Feature Screen printing, Plotter cutting, Die cutting

    Type ⅠEngineering Grade Acrylic PMMA  TN9017 reflective films Description

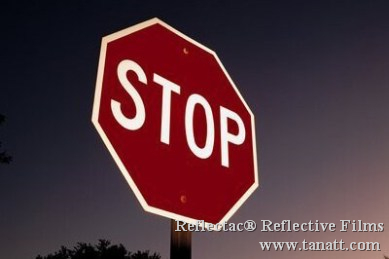

    TN9017 Engineer Grade is a durable, self-adhesive enclosed beaded retro-reflective sheeting intended for using on temporary road traffic signs, multicolor graphic signs, advertising boards, vehicle signs.

    This product has certified by ASTM D4956 Type IEN12899 RA1GB/T 18833-2012 type III and CE.

    Technical Data

    • Retroreflective Elements: enclosed glass beaded
    • 7 years durability outdoor passed ASTM D4956 colorfastness (Artificial accelerated weathering based)
    • Roll Sizes: 1.24M (W) x 45.7M, 48” (W) x 50 yards
    • Minimum Coefficient of Retroreflection (cd/lx/m2)
    Color White Yellow Orange Red Green Blue Brown
    0.2/4 90 60 30 14 6 1.5 0.5

    * Test by Roadmaster according to ASTM D4956

    • Film Thickness: 130mic
    • Face Film: Acrylic
    • Adhesive: 30 mics permanent pressure sensitive adhesive
    • Release Liner: 150 GSM Poly coated paper liner (white or yellow)
    • Application Surface: Flat surface only such as aluminum
    • Application Temperature: 18-28℃ by any of the following methods:
      • Mechanical squeeze roll applicator
      • Hand squeeze roll applicator
      • Hand application is recommended for copy only

    Leading Time

    • We have regular stock in the warehouse, otherwise, it will take 7-10 days upon deposits receive. Please confirm with us before ordering.

    OEM & ODM

    • For order less than 100 rolls, we can do OEM Carton and Product mark
    • For order more than 100 rolls, and request your own logo, it needs one more deposit.

    Quality Inspection

    • Raw material inspection: From face film to release paper, all the material will be strictly inspected before putting into production. We only use Qualified raw materials;
    • Production inspection: QC will cut production samples, bring it to our own lab then inspect brightness, stretch, thickness, etc.,also they will bring Brightness detector to production line and check for brightness.
    • Final inspection:We will sample test the final product, and also do inspection under client’s requested.


    • Inner packing: PET inner film + Plastic Bag + 2 pc Plastic Plug
    • Outer packing: 5 layers carton box with carton sealing nail
    Model Size (M) Carton (M) N.W.  (KG) G.W. (KG) 20GP  (Roll)
    TN9017 1.24*45.7 1.31*0.21*0.24 24.9 28.3 360
    • *This data only for reference
    • *Please contact our staff for customized products.
    • *The data included the pallets size, we recommended to use pallets for protect the engineering grade goods as it’s very heavy.
    • Loading Port:Shenzhen or other China port


    • Reflective Sheeting must be used within 1 year after the date of receipt from Tanatt;
    • Please use PET inner film to tightly packed partially used Rolls, then return it back to the shipping carton. Vertically placed it can avoid distortion due to substrate buckling or extension due to moisture absorption, and avoid pressure that may damage reflective layer.
    • Store the sheeting in a clean, dry area at 20 ℃ and 50% relative humidity and away from direct sunlight;
