5 Years Engineer Grade Reflective Films

5 Years Engineer Grade Reflective Films
Face Film Acrylic
Film Thickness 115 mics
AVG(RA) ≥50 CIL/㎡
Durability 5 years Outdoor
Width up to 124cm, can be customized
Release Liner 130 gram
Feature Screen printing, Plotter cutting, Die cutting

5 Years Engineer Grade Reflective Films Description

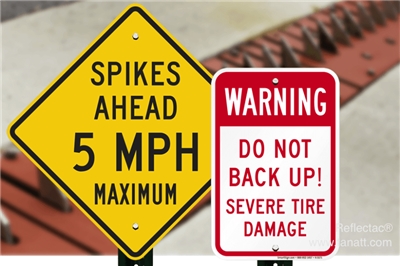

TN9019 Acrylic Engineer Grade Reflective Films is a durable, outstanding quality, enclosed beaded retroreflective sheeting intended for using on signing applications requiring durability of up to 5 years, for permanent and temporary traffic signage. It is widely used as car number plate sheeting in Europe and Spain.

Technical Data

  • Retroreflective Elements: enclosed glass beaded
  • 5 years durability outdoor
  • Roll Sizes: 1.24M (W) x 45.7M, 48” (W) x 50 yards
  • Minimum Coefficient of Retroreflection (cd/lx/m2)
Color White Yellow Orange Red Green Blue Brown Black
0.2/4 50 25 20 8 2.5 1.5 1 0.1

* Test by Roadmaster according to ASTM D4956

  • Film Thickness: 115mic
  • Face Film: 30 mics Acrylic
  • Adhesive: 30 mics permanent pressure sensitive adhesive
  • Release Liner: 130 GSM Poly coated paper liner (white or yellow)
  • Application Surface: Flat surface only such as aluminum
  • Application Temperature: 18-28℃ by any of the following methods:
    • Mechanical squeeze roll applicator
    • Hand squeeze roll applicator
    • Hand application is recommended for copy only

Leading Time

  • We have regular stock in the warehouse, otherwise, it will take 7-10 days upon deposits receive. Please confirm with us before ordering.


  • For order less than 100 rolls, we can do OEM Carton and Product mark
  • For order more than 100 rolls, and request your own logo, it needs one more deposit.

Quality Inspection

  • Raw material inspection: From face film to release paper, all the material will be strictly inspected before putting into production. We only use Qualified raw materials;
  • Production inspection: QC will cut production samples, bring it to our own lab then inspect brightness, stretch, thickness, etc.,also they will bring Brightness detector to production line and check for brightness.
  • Final inspection:We will sample test the final product, and also do inspection under client’s requested.


  • Inner packing: PET inner film + Plastic Bag + 2 pc Plastic Plug
  • Outer packing: 5 layers carton box with carton sealing nail
Model Size (M) Carton (M) N.W.  (KG) G.W. (KG) 20GP  (Roll)
TN9019 1.24*45.7 1.31*0.21*0.24 19.3 22.7 360
  • *This data only for reference
  • *Please contact our staff for customized products.
  • *The data included the pallets size, we recommended to use pallets for protect the engineering grade goods as it’s very heavy.
  • Loading Port:Shenzhen or other China port


  • Reflective Sheeting must be used within 1 year after the date of receipt from Tanatt;
  • Please use PET inner film to tightly packed partially used Rolls, then return it back to the shipping carton. Vertically placed it can avoid distortion due to substrate buckling or extension due to moisture absorption, and avoid pressure that may damage the reflective layer.
  • Store the sheeting in a clean, dry area at 20 ℃ and 50% relative humidity and away from direct sunlight.
